JRE

JRE (Java Runtime Environment)​

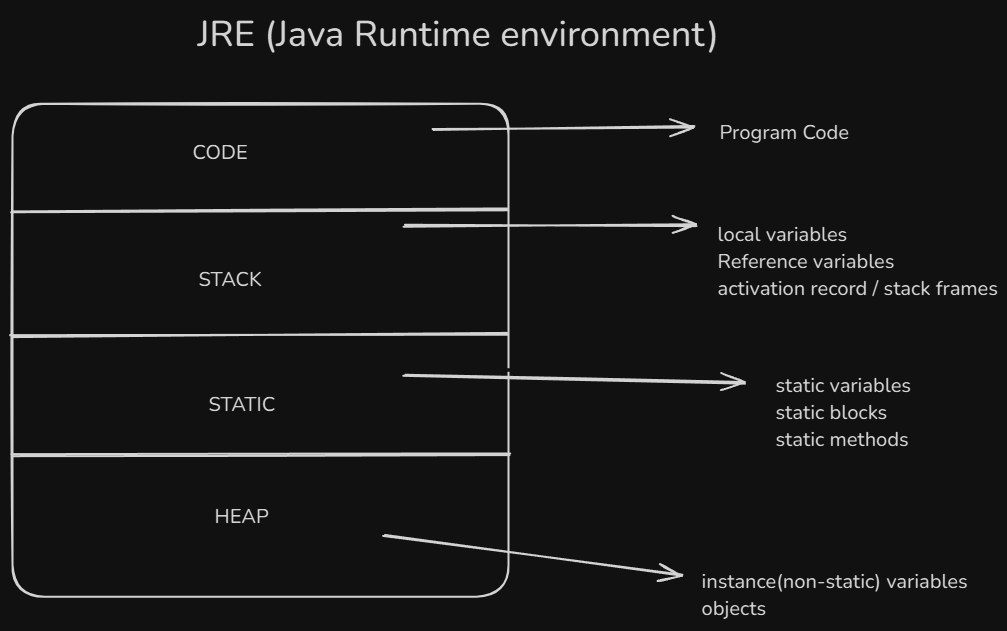

JRE Diagram

Definition​

JRE is the space where a Java program runs (gets executed). It provides the environment necessary to run Java applications.

What does JRE contain?​

  • JVM (Java Virtual Machine) – The engine that runs Java bytecode
  • Libraries and Class Files – Predefined Java libraries required to run programs
  • Other Supporting Files – Configuration and runtime tools

Purpose​

  • JRE does not compile code — it only runs already compiled Java programs (.class files).
  • It ensures your program runs consistently on any system that has JRE installed.

Summary​

JRE is like a stage where your Java play (program) is performed.
It doesn’t write the play — it just performs it.

Flow​

public class Program {
public static void main(String[] args) {
add();
}
static void add(){
int a = 10;
int b = 20;
int c = a+b;
System.out.println(c);
}
}

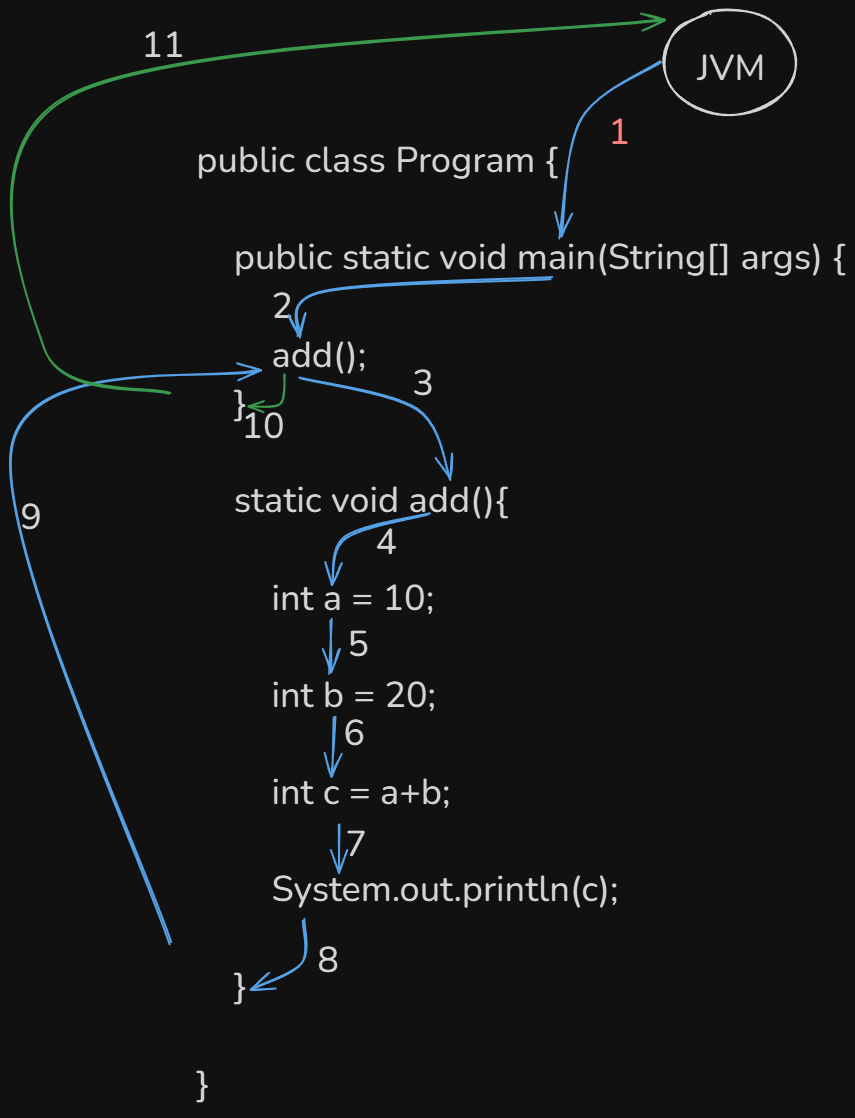

Program Flow

What Happens When a Method is Called?​

Whenever a method is called in Java:

  • A stack frame (also called an activation record) is created in the stack segment of memory.
  • This stack frame holds all the information required for the method's execution.
  • When the method execution is completed, its stack frame is removed (popped) from the stack.

Stack Frame (Activation Record)​

  • A stack frame is a block of memory that is allocated on the stack segment.
  • It stores:
    • Local variables
    • Return address
    • Parameters
    • Temporary data used during method execution

Local Variables​

  • Local variables are the variables declared inside a method.
  • Their memory is allocated within the method's stack frame.
  • These variables are accessible only during the method's execution and are destroyed once the method ends.

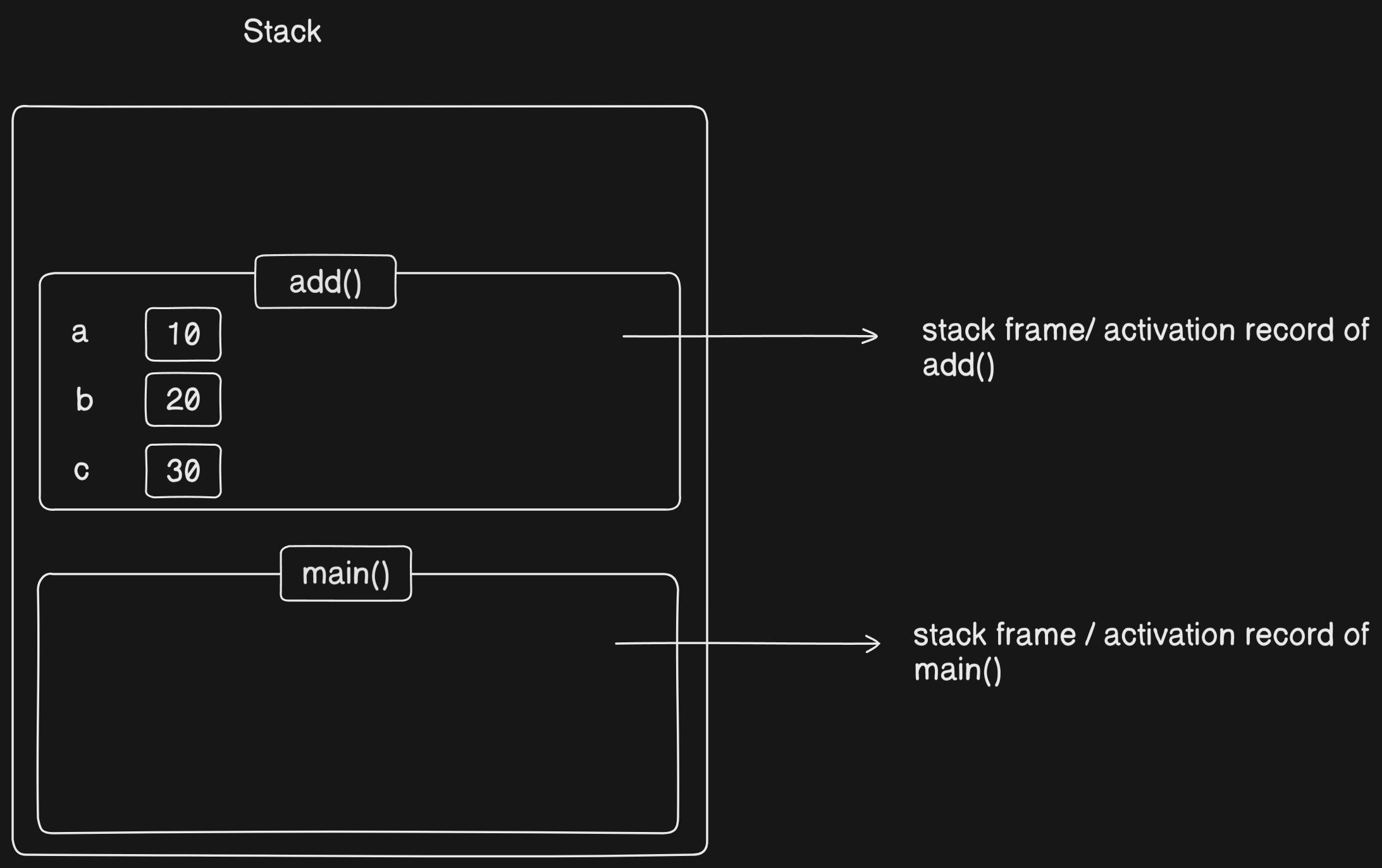

Stack

import java.util.Scanner;

public class RemainderCalculator {

// Method to calculate remainder
public static double findRemainder(double num1, double num2) {
return num1 % num2;
}

public static void main(String[] args) {
Scanner sc = new Scanner(System.in);

// Input two double numbers
System.out.print("Enter first number: ");
double a = sc.nextDouble();

System.out.print("Enter second number: ");
double b = sc.nextDouble();

// Call the method to find remainder
double result = findRemainder(a, b);

// Output the result
System.out.println("Remainder: " + result);

sc.close();
}
}
